Thermaltake Smart BX1 RGB 80+ Bronze 550W SLI/Crossfire Haswell Ready Continuous Power ATX12V v2.31 / EPS 12V Non-Modular Power Supply
TK 6,499TK 6,800 (-4%)
Thermaltake RGB Power Supply Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W models. The preinstalled 10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in memory function, which saves the colors applied and insure the same color selection every time you boot your PC. Comes with premium components, stable continuous power output at 40℃, and ample 5-year warranty, its near-silent operation, trouble-free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.
- Ultra Quiet Fan 120mm
- High Quality Japanese Capacitor
- 10 RGB LEDs Preinstalled
- 80 PLUS Bronze Certified
- High Amperage Single +12V Rail
- Warranty – 5 Years (Burn)
Additional information
| BRAND | |
|---|---|
| CONDITION | |
| MODEL NO | Smart BX1 550W |
| SERIES | Smart BX1 |
| COLOR | Black |
| PSU CATEGORY | Non Modular |
| PSU TYPE | ATX 12V v2.4 and EPS v2.92 |
| WATTS | 550W |
| RGB FAN | Yes |
| FORM FACTOR | ATX |
| MAX. OUTPUT CAPACITY | 550W |
| PEAK OUTPUT CAPACITY | 660W |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 70% of full load |
| INPUT CURRENT | 10A max. |
| INPUT FREQUENCY RANGE | 50Hz – 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 5°C to + 40°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm Fan Hub |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| PCI-E 6+2PIN | 2 |
| PROTECTION | OVP, OPP, SCP |
| SAFETY APPROVAL | CE/CB/TUV/ UL/ FCC/ BSMI |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| WARRANTY | 5 Years Burn Warranty (With BurnCase) |
Thermaltake RGB Power Supply Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W models. The preinstalled 10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in memory function, which saves the colors applied and insure the same color selection every time you boot your PC. Comes with premium components, stable continuous power output at 40℃, and ample 5-year warranty, its near-silent operation, trouble-free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.

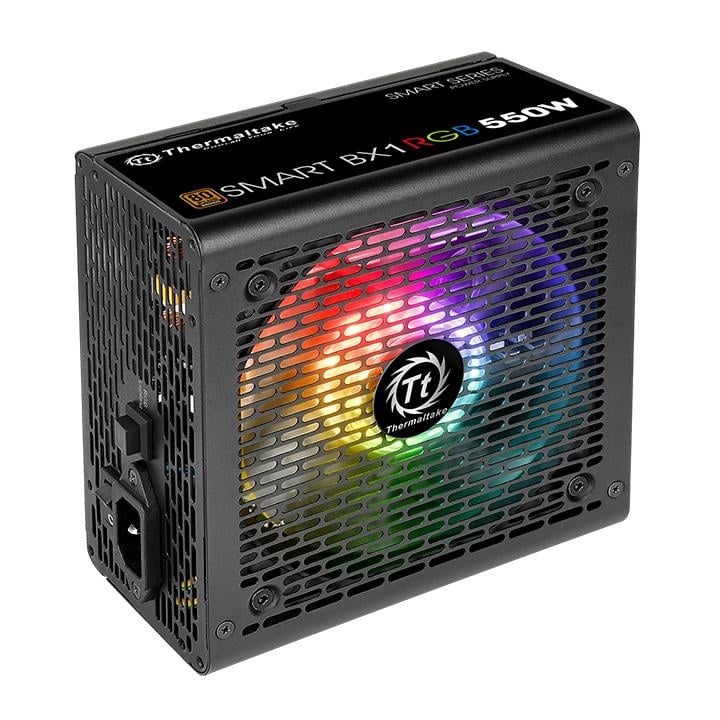

10 RGB LEDs Preinstalled
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.

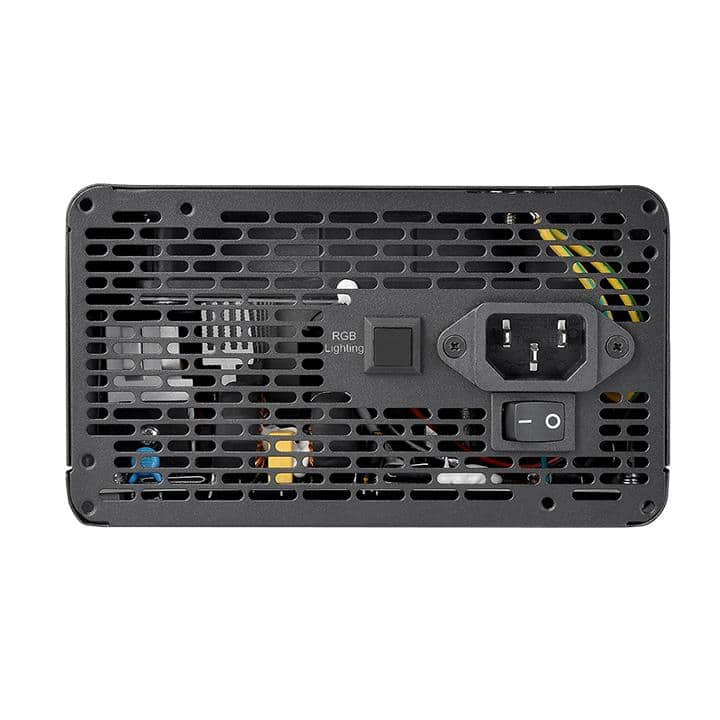

One Button to Your Desired Color
Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.

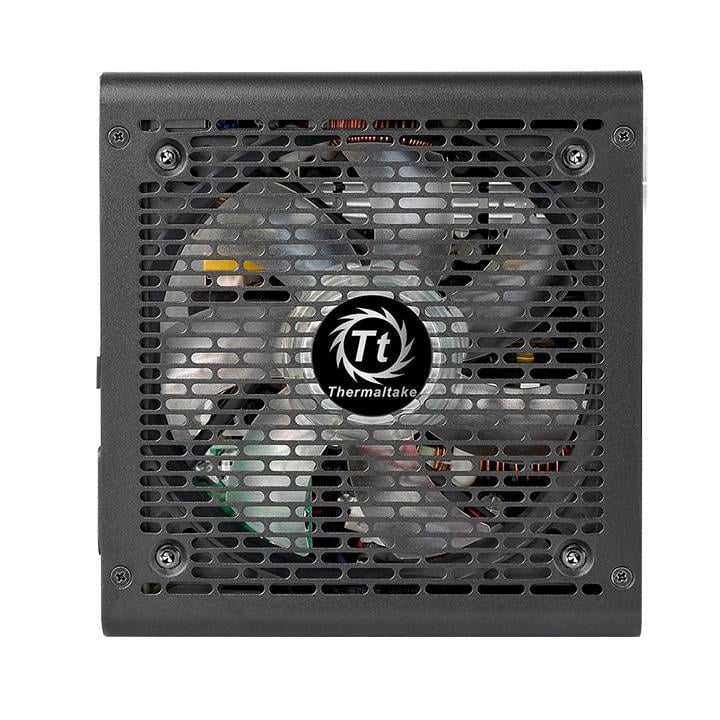

Ultra Quite 120mm Hydraulic Bearing Fan
Featuring a 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation.
80 mV Low Ripple Noise
All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high-quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, operating reliably for longer.
High-Quality Japanese Main Capacitor
Greatly improves durability and offers the highest stability and reliability.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Multiple Connectors
Soft black cables come with a sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
80 PLUS Bronze Certified and Intel C6/C7 States Ready Ready
Smart BX1 RGB series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
RGB Lighting Gives Best Aesthetics for All Chassis
Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.
